Technical Description

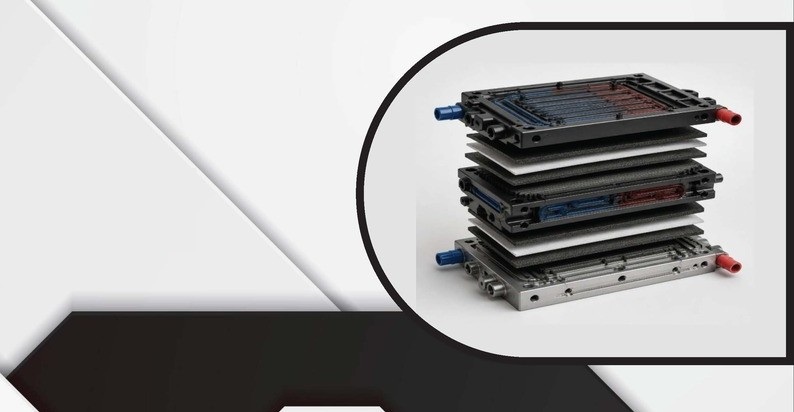

This invention discloses an optimized flow battery cell architecture that utilizes stacked structural frames with integrated inlet, outlet, and internal distribution channels. By sandwiching stepped electrodes and porous separators between functional collector end plates, it establishes uniform electrolyte flow paths to maximize electrochemical charge transfer.
Problems Addressed
- Inefficient Electrolyte Distribution
- Lacks Uniform Flow
- Restricted Charge Transfer
- Complex Cell Stack-Up
- High Internal Resistance
- Poor Seal Reliability
Tech Features
- Integrated Flow Framing
- Stepped Electrode Housing
- Balanced Multi-Passage Fluidics
- Sandwich Collector Architecture
- Equidistant Channel Routing
Target Audience
- Battery Manufacturing Industries
- Renewable Energy Sectors
- Grid Storage Developers
- Electric Vehicle Manufacturers
- Research & Development
Tech ID: P09-2248 TRL 5 Patent Status: Granted Available For Exclusive and Non-exclusive License
